Minor Loss: Exit

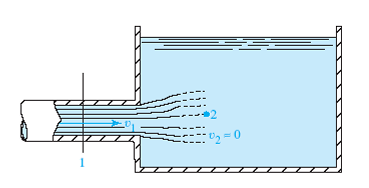

As a fluid flows from a pipe into a large reservoir or tank, as shown in figure below, its velocity is decreased to very nearly zero. Therefore, the energy loss for this condition is $$h_L=1.0 * \frac{v^2}{2g}$$ This is called the exit loss.
